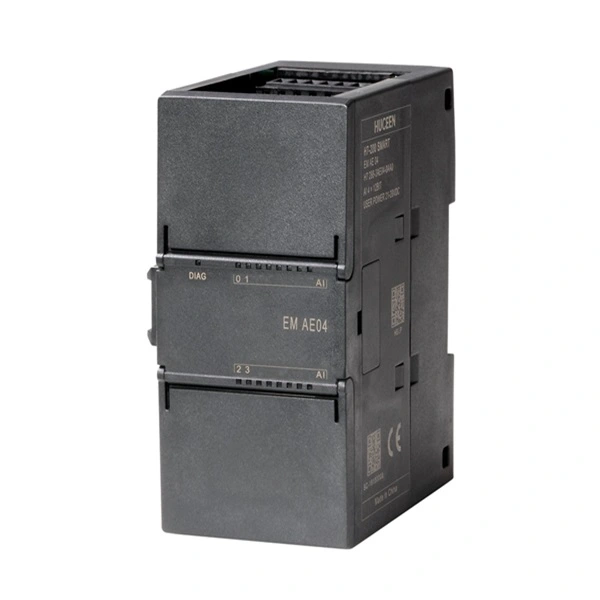

4-channel analog input, resolution 12 bits, full channel support current/voltage input
Model no
EM AE04Article No
E 288-3AE04-0AA1Description
4-channel analog input, resolution 12 bits, full channel support current/voltage inputDimensions WxHxD（mm）
47×100×81mm| Specification parameters | Model no | EM AE04 |
|---|---|---|
| Article No | E 288-3AE04-0AA1 | |
| Description | 4-channel analog input, resolution 12 bits, full channel support current/voltage input | |
| Conventional norm | Dimensions WxHxD（mm） | 47×100×81mm |
| Power Consumption | 1.5W | |
| Current Consumption(SM bus) | 90mA | |
| Current Consumption(24V DC) | 20mA | |
| Analog Input | Number of Inputs | 4 |
| Input Type | voltage or current (differential): 2 can be selected as a group range | |
| Input Range | ||
| Electric Current | 0~20mA | |
| Supply Voltage | ±2.5V，±5V，±10V | |
| Data Word Format | ||
| .Unipolarity | 0~+27648 | |
| .Bipolar | ±27648 | |
| Max. Voltage Resistance | ±35V | |
| Max. Current Resistance | ±40mA | |
| Smoothness | None, weak, medium or strong | |
| Noise Supression | 400,60,50 or 10Hz | |
| Resolution | ||
| Voltage Mode | 12 bits + symbol bits | |
| Current Mode | 12 bits | |
| Isolation (field side and logic side) | 500V AC | |
| Precision（25℃/0~55℃） | ||
| .Voltage Mode | full range ±0.1%/±0.2% | |
| .Current Mode | full range ±0.2%/±0.3% | |
| Analog to digital Conversion Time | 625 µs（400Hz inhibited） | |
| Common mode Rejection | 40dB, DC to 60HZ | |
| Working Signal Range | signal plus common mode voltage ≤12V | |
| Diagnosis | Overflow/ underflow, 24V DC low voltage | |
| Cable Length (M) | 100m, shielded twisted pair |
