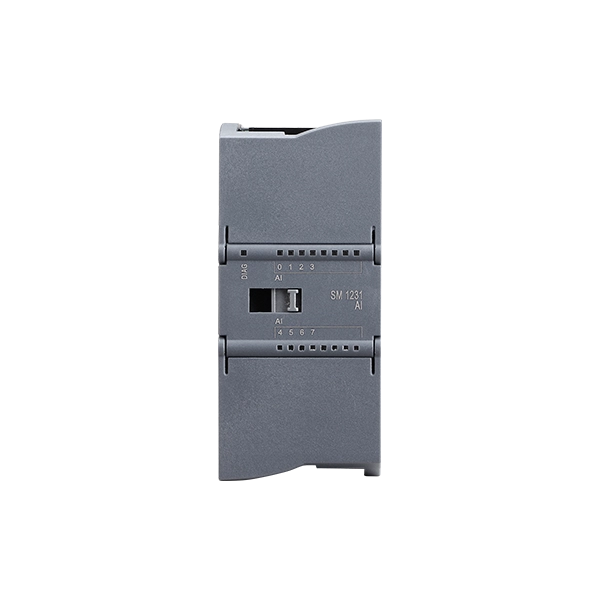

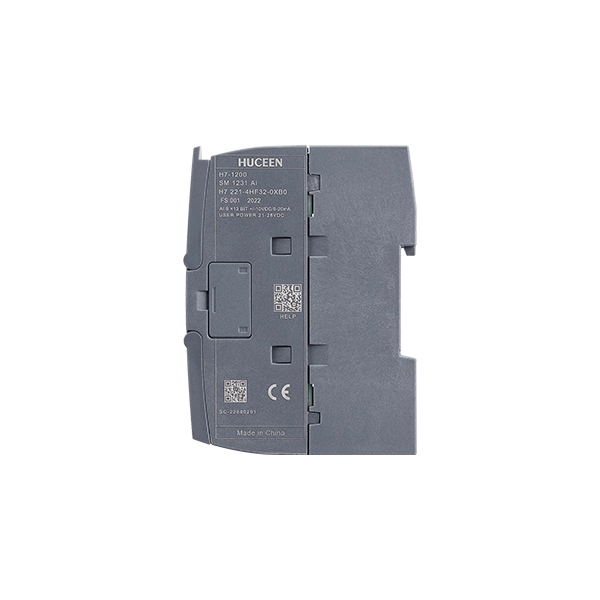

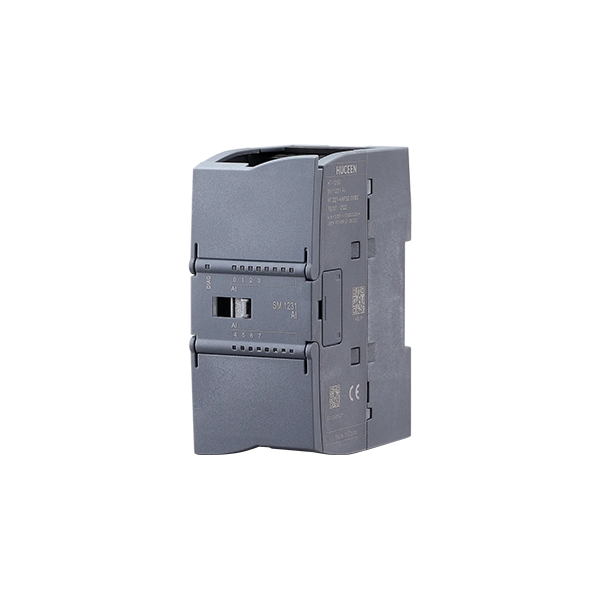

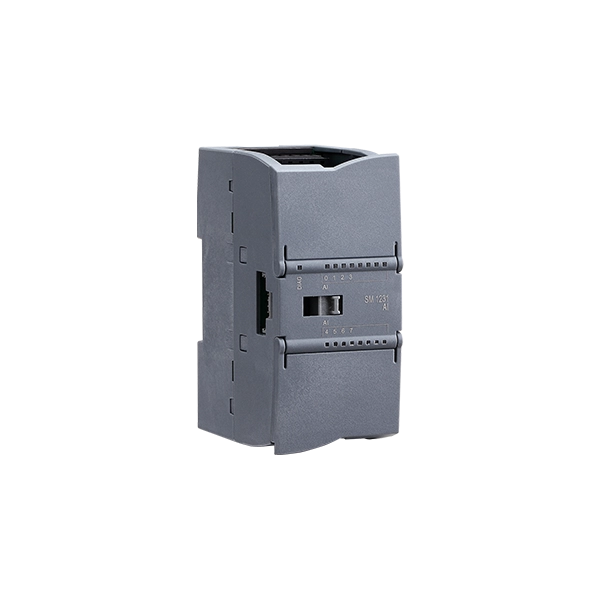

Analog input module AI 8 x 13 bit，Power Consumption 2.3W
Model no
SM 1231 AI 8x13bitArticle No
H7 231-4HF32-0XB0Description
Analog input module AI 8 x 13 bit，Dimensions WxHxD（mm）
45x100x75mm| Specification parameters | Model no. | SM 1231 AI8 x 13 Bits |
|---|---|---|
| Article No. | H7 231-4HF32-0XB0 | |
| Description | Analog input module AI 8 x 13 bits | |
| Conventional norm | Dimensions WxHxD（mm） | 45x100x75mm |
| Power Consumption | 2.3W | |
| Current Consumption(SM bus) | 90mA | |
| Current Consumption(24V DC) | 45mA | |
| Analog input | Number of Inputs | 8 |
| Input type | voltage or current (differential): 2 can be selected as a group range | |
| Input range | ±10 V、± 5 V、± 2.5 V or 0 － 20 mA | |
| Full scale range(Data word） | -27648-27648 | |
| Overshoot/undershoot range(Data word） | Voltage: 32,511－27,649/-27,649 － -32,512 Current: 32,511－27,649/0 － -4,864 | |
| Overflow/Underflow (Data Word） | Voltage: 32,767－32,512/-32,513 － -32,768 Current: 32,767－32,512/-4865 － -32,768 | |
| Data format | 12 bits + signal bits | |
| Max. Voltage/Current Resistance | ±60V/±40mA | |
| Smoothness | None, weak, medium or strong | |
| Noise suppression | 400、60、50 or 10Hz | |
| Isolation(field side and logic side) | None | |
| Precision(25℃/0-55℃） | full range ±0.1%/±0.2% | |
| Working Signal Range | signal plus common mode voltage must be <+12V and >-12V | |
| Diagnosis:Overflow/underflow | Support | |
| Circuit Break（Current Mode Only） | not applicable |
